Transit,
Supertransit and Sprint Automatic Systems for Swing Doors
Significant
Features
•
Sturdy anodized aluminium box of exclusive and elegant design
with plastic side panels (except in Sprint).
• Microprocessor logic electronic control board for “intelligent”
control of all automatic functions. Can handle a large number
of complex operations.
• Automatic limit switch with encoder
• Superior accident-prevention system thanks to an intrinsic-safety
anticrush device built into the electronic control board and
very gentle thrust in opening and closing.
• Articulated and sliding arms for wing push and pull
movements, also available in the antipanic version.
• Possibility of installing: full range of common accessories
such as control, safety and security devices, photocells,
floor mats, control buttons, electronic programmers for access
control and functions, function selectors, etc.
• A large number of components common to Transit and
Supertransit models for expeditious servicing.
The
Range
Even
though all doors to be automated may seem the same, to besure
to satisfy all requirements. DITEC offers seven models in
three basic
versions and four variants each of which grouped in two operation
typologies:
• motor-driven opening and spring operated closing;
• motor-driven opening and closing.
Motor-driven opening and spring operated closing
This type of operator is the ideal choice whenever door closing
is to be
ensured even in case of power failure. With this set-up the
door can be
opened manually, thus loading a spring which comes into operation
upon reclosing just like an ordinary door-closer.
This type of operation is featured by:
• Supertransit 95C
• Supertransit 95L
Ideal for intensive use and for even very heavy doors, Supertransit
95 is
the top-of-the-range in springoperated automatic doors. Pleasant
in appearance, sturdy in construction and highly adaptable,
this type of
door operator is the right choice for satisfying a wide range
of requirements including those dictated by the regulations
in force in a number of countries in relation to fire-barrier
doors.
• Transit UE
Especially suited for installations not requiring great force
and power but
rather gentle and easy movements. Ideal for indoor installations
particularly where people with deambulating difficulties are
frequent users.
Motor-driven opening and closing
This type of operator is chosen in all situations not requiring
the spring operated version. It comes into its own particularly
for outdoor installations in conditions of strong wind blowing
in the opposite direction to that of door closing.
In
fact, a spring-operated operator would not permit the door
to be so easily closed or kept closed under such conditions,
thus causing considerable inconvenience. This type of operation
is featured by:
Transit 97C
Transit 97L
Wherever intensive or heavy-duty conditions prevail and where
a door which can be opened easily and gently is required,
Transit 97 is the best and most reliable solution adaptable
to a wide range of situations.
Sprint
A new entry and, as such, featuring the most advanced technology
currently available in this sector. Applicable in situations
similar to those for which Transit 97 is recommended. The
size, weight and price of this automatic system are the first
to be very close to those of a good quality manual door-closer.
It is an operator which will undoubtedly become a reference
in its sector world-wide.
Automated
Systems With Motor-Driven Opening And Spring-Operated Closing
Supertransit
95
An
extremely versatile automatic operator suitable for a wide
range of applications in both new and existing doors. Easy
and quick to mount, Supertransit 95 is reliability at its
best and is ideal for many applications. Of very sturdy construction
and requiring no special maintenance, Supertransit 95 incorporates
a technology which has become a reference in the sector. Also
available with built-in continuity battery (Supertransit 95L),
Supertransit 95 can also be supplied in the assembly kit version
for professional installers. Supertransit 95 is moreover available
in an approved fire-proof version featuring a special articulated
arm for specific installation requirements (model 95 W with
TBAW arm). N.B. For some countries only.
Transit
UE
Transit
UE has been especially designed for installations where Supertransit
would be oversized. Its movement system is such as to exert
a controlled thrust both in opening and closing which makes
Transit UE extremely safe and reliable. The low force of the
geared motor is always kept under control so that the anticrush
function is truly intrinsic, thus making for maximum safety.
Thanks to these features, this operator is ideal for hospitals,
wards, and wherever there are people with deambulating difficulties.
Automatic
Systems With Motorised Opening And Closing
Transit
97
Powerful
and versatile, Transit 97 has been especially designed to
operate swing doors under intensive and heavy duty conditions
well beyond the limits of other operators. This
is made possible by the fact that both opening and closing
are driven by the geared motor and that all operations are
handled by an extremely reliable microprocessor controlled
electronic logic. Wherever intensive, heavy duty and extreme
weather (winds, storms, etc.) conditions prevail, Transit
97 is sure to meet the challenge. Available either with or
without builtin continuity battery as well as in the assembly
kit for professional installers.
 Sprint
A
truly innovative operator for swing doors, Sprint features:
compact design and lightweight construction
a standard built-in battery
an easily accessible on-off switch
the possibility of selecting the Push and Go or Low Energy
operating mode
The possibility of selecting the Low Energy operating mode
simply at the click of a dip switch makes Sprint particularly
suited for applications where persons with deambulating difficulties
are frequent users. The Push and Go mode, also selected via
a dip switch, is indispensable in situations where the installation
of detection devices for controlling the door is not recommendable.
Thanks to these and other special features, Sprint can be
considered to be an operator at the top of its range world-wide.
Jolly
E & Jolly M Automatic Systems For Sliding Doors And Windows
The
aim of the Jolly series of automatic systems for sliding doors,
windows shutters and so on is, so to speak, to bring automation
to the masses.
In fact, while incorporating all the advanced technological
features of DITEC products, these systems have been designed
and developed with a special eye to absolute ease of installation
and maintenance.
Featuring an extremely compact design, they are supplied in
assembly kits including the full range of fittings and components
required for installation.
The Jolly series represents a great step forward towards the
use of automatic systems at home. Being fully reversible,
the Jolly series of operators allow the door, window, shutter,
etc. to be easily and effortlessly opened manually in case
of their deactivation.
Jolly
E is a small operator with belt transmission capable of moving
single- wing sliding doors, windows, shutters, etc. of up
to 80 Kgs in weight. It can be mounted on existing installations,
whether exposed or hideaway. Suitable for manifold applications
besides doors, including shutters, windows, protection grids,
partition walls, and so on.
Easy
and quick to install, the product is of such simple design
and construction that it requires no special maintenance.
Jolly E: automatic exposed shutters Jolly E automatic system
Automatic exposed grid/shutter Automatic partition wall Jolly
E Kit Viene Jolly E comes in a practical box containing all
the parts required for automating a one-wing sliding door
or window, namely:
the Jolly E geared motor
1.5m-long drive belt
belt attachments
the pushbutton panel with built in electric board in a 3-place
light point box.
A wing lock fitting is also available on request.
EXAMPLES
OF INSTALLATION

Jolly
M Automatic System
The
Jolly M automatic system is not only extremely compact in
design but also intelligent, being capable of moving via
a belt single-wing sliding doors, windows and so on.
In fact, it is equipped with a microprocessor thanks to which
movements are always kept under perfect control, being always
smooth and regular and with the same acceleration and deceleration
typical of traditional automatic systems.
Simplicity of design and construction together with ease of
installation make the Jolly M the ideal choice for automating
existing singlewing indoor sliding doors, whether exposed
or hide-away, without the need for special masonry or joinery
works.
Jolly M is truly a unique product on the market, being a veritable
innovation in the home door automation sector. Given DITECs
agenda to bring door automation to the widest possible number
of consumers, even to those who till now have not been able
to afford such a commodity, Jolly Ms price and performance
characteristics have been especially chosen to make it a sure
big seller.

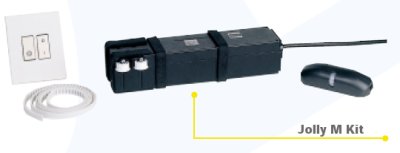

Jolly
M Kit Available in two versions, with or without the passive
infrared detector for automatic opening.
Both versions comprise:
the Jolly M actuator
a 1.5m-long drive belt
two belt couplings
an automatic closing adjuster
a pushbutton panel
Additional
loose parts such as radar and pushbutton panel are also available
on request.
|
