PROXIMITY
P series compact readers
An access control system that is genuinely easy to use
All cards are immediately valid
A lost card can be deleted in seconds
Extra card packs can be purchased ex-stock
Control over access by token colour
IP67 rated - suitable for external use Up to 10,000 users
on one site.
About
- PROXIMITY compact is a single door access control system.
All of the electronics are within the housing of the reader.
Compact systems can be installed to many doors over a site,
all using the same cards. The P series readers are supplied
with a choice of black or white fascias that can be fitted

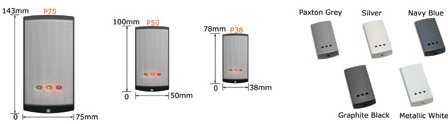

in the final stages of installation. The P series readers
are available in three sizes as shown in the illustration
below.
Installation - The compact reader has two wires which
connect to the lock and two wires which connect to the power
supply. There are two wires for connection to an exit button
if required. The cable exits centrally from the back of the
reader making drilling and mounting very accurate. Once installed
present the enrolment card to the reader. All the tokens in
the pack are now valid. This completes the installation!
Operation - User tokens are valid and ready for use once
installation is complete. Every user token is supplied with
a corresponding shadow token. As user tokens are issued, the
name of the user is marked on the shadow card. If a user is
to be barred, or a user card is lost, the shadow token marked
with the users' name is presented to all readers on site.
This simple action invalidates the user card. Another user
card may be issued for that user. Additional features can
be programmed using the PROXIMITY function card pack. These
features include zoning which allows you to limit access by
token colour.
 CARDLOCK
compact readers
Cards are low cost
An access control system that's easy to use
All cards are immediately valid
A lost card can be deleted in seconds
Control over access by card colour
Up to 10,000 users on one site
Locks/power supplies/tokens sold separately
IPX7 rated - suitable for external use
About
- CARDLOCK compact is a single door access control system
with all of the electronics within the housing of the reader.
Compact systems can be installed to many doors over a site,
all using the same cards. The reader is supplied with a smart
satin chrome finish.
Installation
- The compact reader has two wires which connect to the lock
and two wires which connect to the power supply. There are
two wires for connection to an exit button if required. Use
the template provided to mark and drill holes for the cable
and screws. Once installed swipe the enrolment card through
the reader. All the cards in the pack are now valid. This
completes the installation!
Operation
- User cards are valid and ready for use once installation
is complete. Every user card is supplied with a corresponding
paper shadow card. As user cards are issued, the name of the
user is marked on the shadow card. If a user is to be barred,
or a user card is lost, the shadow card marked with the users'
name is swiped through all of the readers on site. This simple
action invalidates the user card. Another user card may be
issued for that user. Additional features can be programmed
using the CARDLOCK function card pack. These features include
zoning which allows you to limit access by token colour.
 TOUCHLOCK
K series compact keypads
Supplied
with a choice of black or white bezels
3 sizes
4 to 8 digit codes
Up to 50 codes
Optional 20 digit lockout
1 to 99 sec door open time
Locks/power supplies sold separately
IP67 rated - suitable for external use
About
- TOUCHLOCK compact is a single door access control system.
All of the electronics are within the housing of the keypad.
Compact systems can be installed to many doors over a site.
The K series keypads are supplied with a choice of black or
white bezels that can be fitted in the final stages of installation.
The K series keypads are available in three sizes as shown
in the illustration below.
Installation
- The compact keypad has two wires which connect to the lock
and two wires which connect to the power supply. There are
two wires for connection to an exit button if required. The
cable exits centrally from the back of the keypad making drilling
and mounting very accurate. All settings and codes are programmed
via the keypad using the master code. Operation - If a valid
code is entered access is granted. Codes are changed via the
keypad using the master code.
 PAXTON
ACCESS CONTROLS
We are an authorised registered installer of Paxton
Access Controls. We have shown the most popular solutions above, but if there
is anything you see on their website that you are interested in, please contact us for pricing / delivery / installation
etc.
